LPG GPL Autogas Angled Filling Point W21.8 x 1/14" 8mm Copper Pipe Non Return Valve

LPG Angled Filling Point W21.8 x 1/14" for 8mm Copper Pipe with Integrated Non-Return Valve

Upgrade your LPG installation with this high-quality angled LPG filling point, designed for safe and reliable refuelling of LPG tanks and refillable gas cylinders. Featuring a W21.8 x 1/14" female filling connection and an 8mm compression fitting for copper pipe, this external filling point is ideal for motorhomes, campervans, caravans, commercial vehicles and LPG vehicle conversions.

The integrated non-return (check) valve provides an additional level of safety by preventing gas from flowing back through the filling point during refuelling. The 90° angled outlet allows for easier installation where space behind the mounting panel is limited.

Features

• LPG external filling point with integrated non-return valve
• W21.8 x 1/14" female filling connection
• 8mm compression fitting for copper LPG pipe
• 90° angled outlet for compact installations
• Suitable for LPG (Propane/Autogas/GPL) systems
• Compatible with ACME, DISH, Bayonet and Euro filling adapters (adapter not included)
• Durable brass construction for long service life
• Supplied with mounting plate, fixing hardware and protective dust cap
• ECE 67R-01 approved (where applicable)

Specifications

• Inlet thread: W21.8 x 1/14" female
• Pipe connection: 8mm compression fitting
• Outlet: 90° angled
• Integrated non-return (check) valve
• Material: Brass
• Fuel: LPG / Propane / Autogas (GPL)

Suitable For

• Motorhomes
• Campervans
• Caravans
• Refillable LPG gas bottle systems
• Fixed LPG tanks
• LPG vehicle conversions
• Commercial vehicles

Package Includes

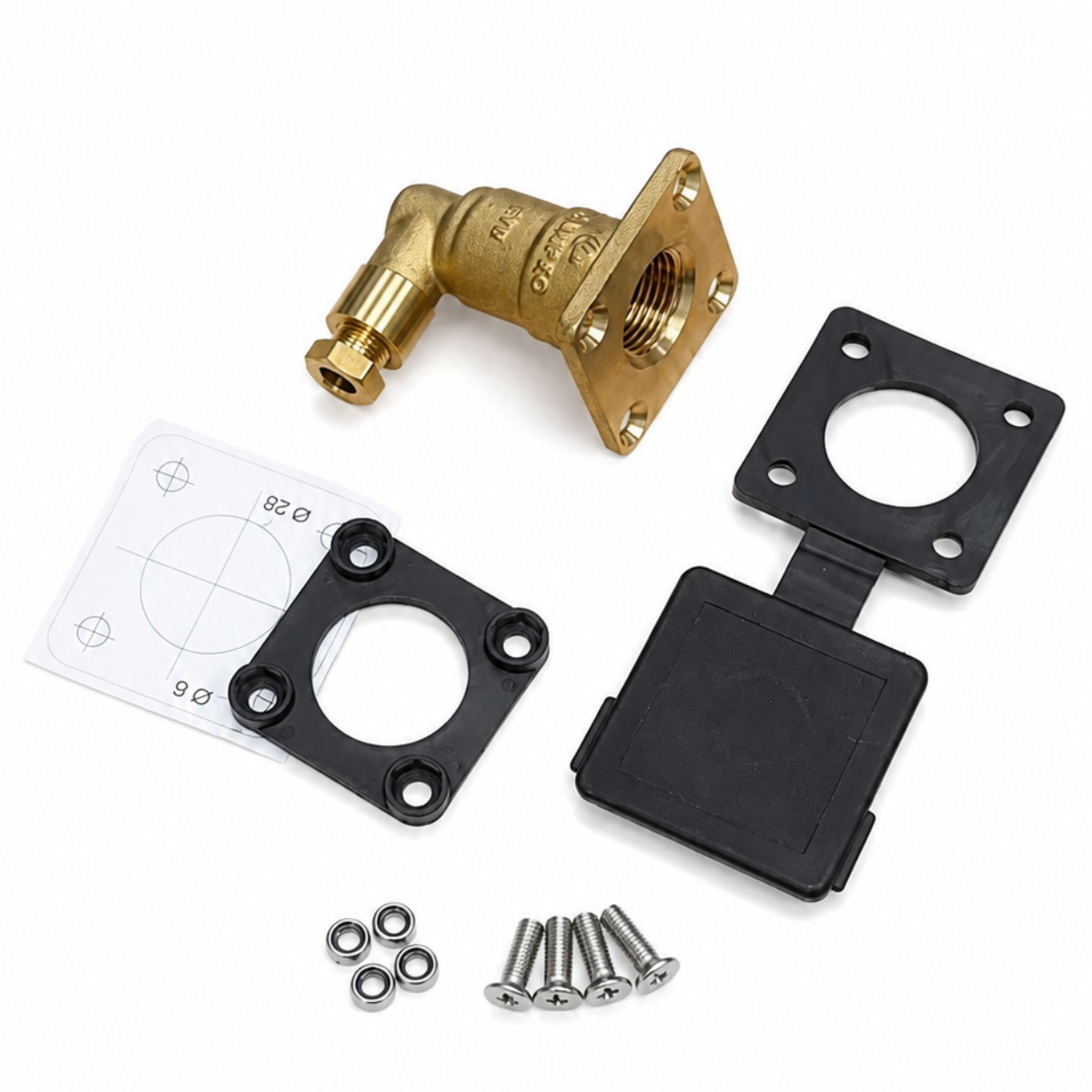

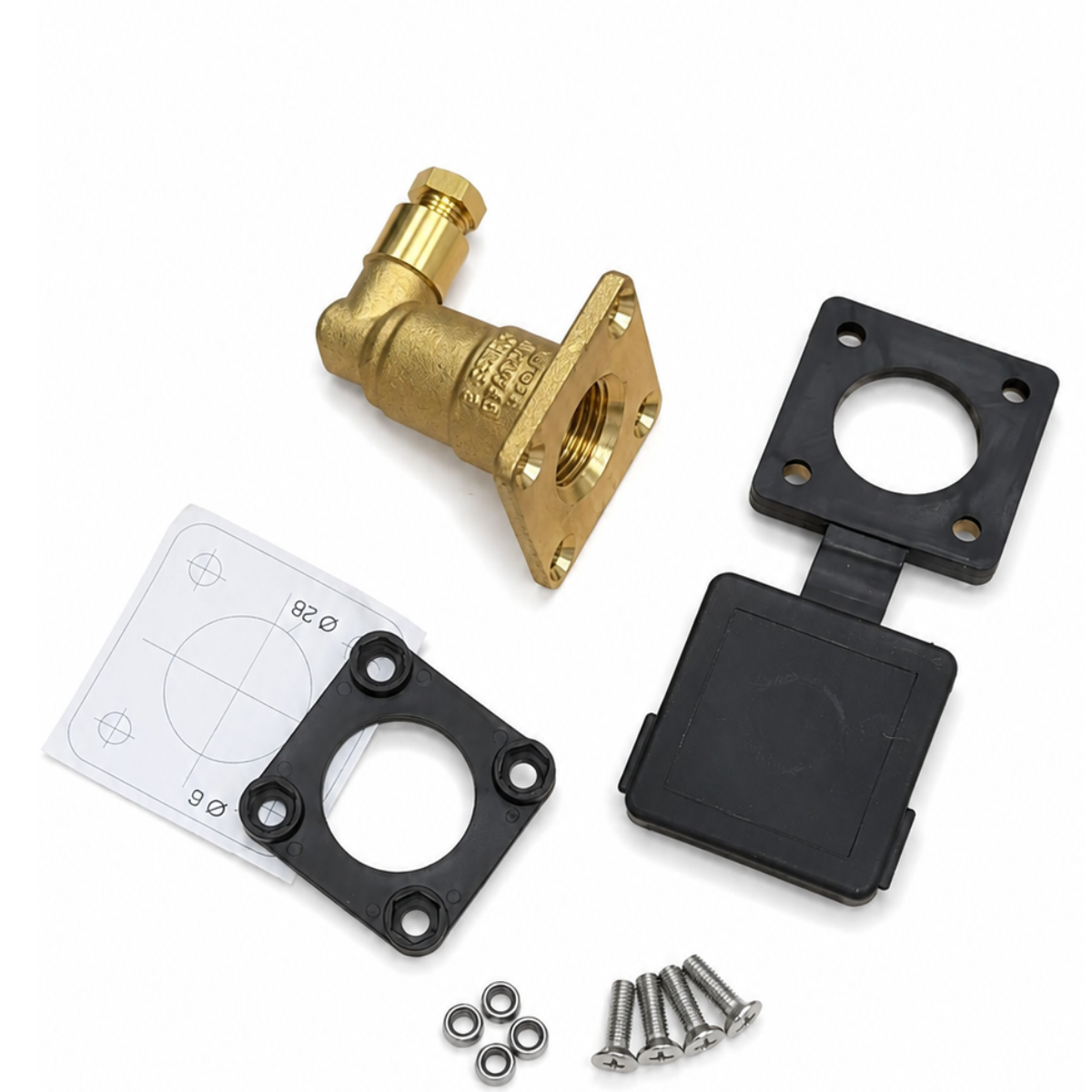

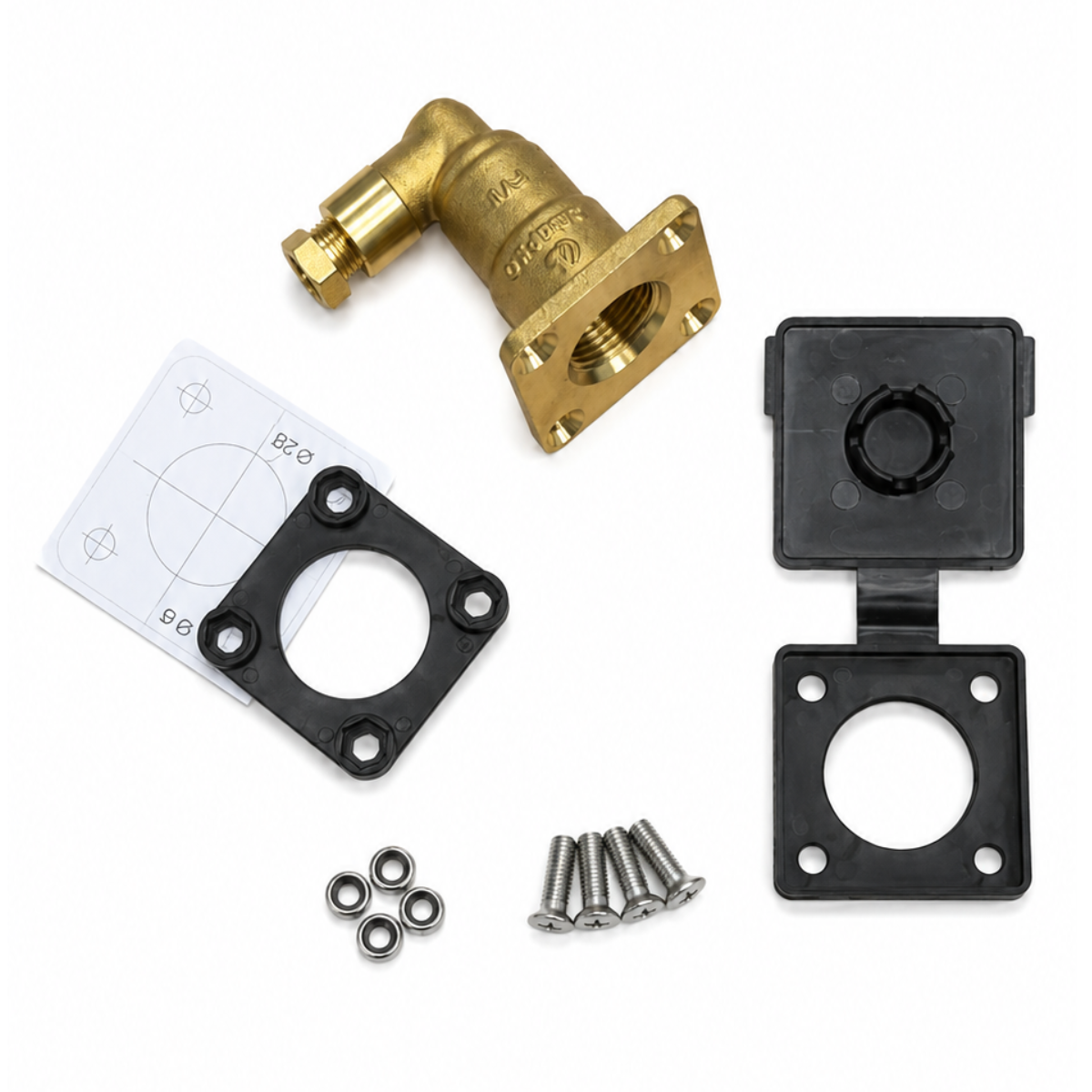

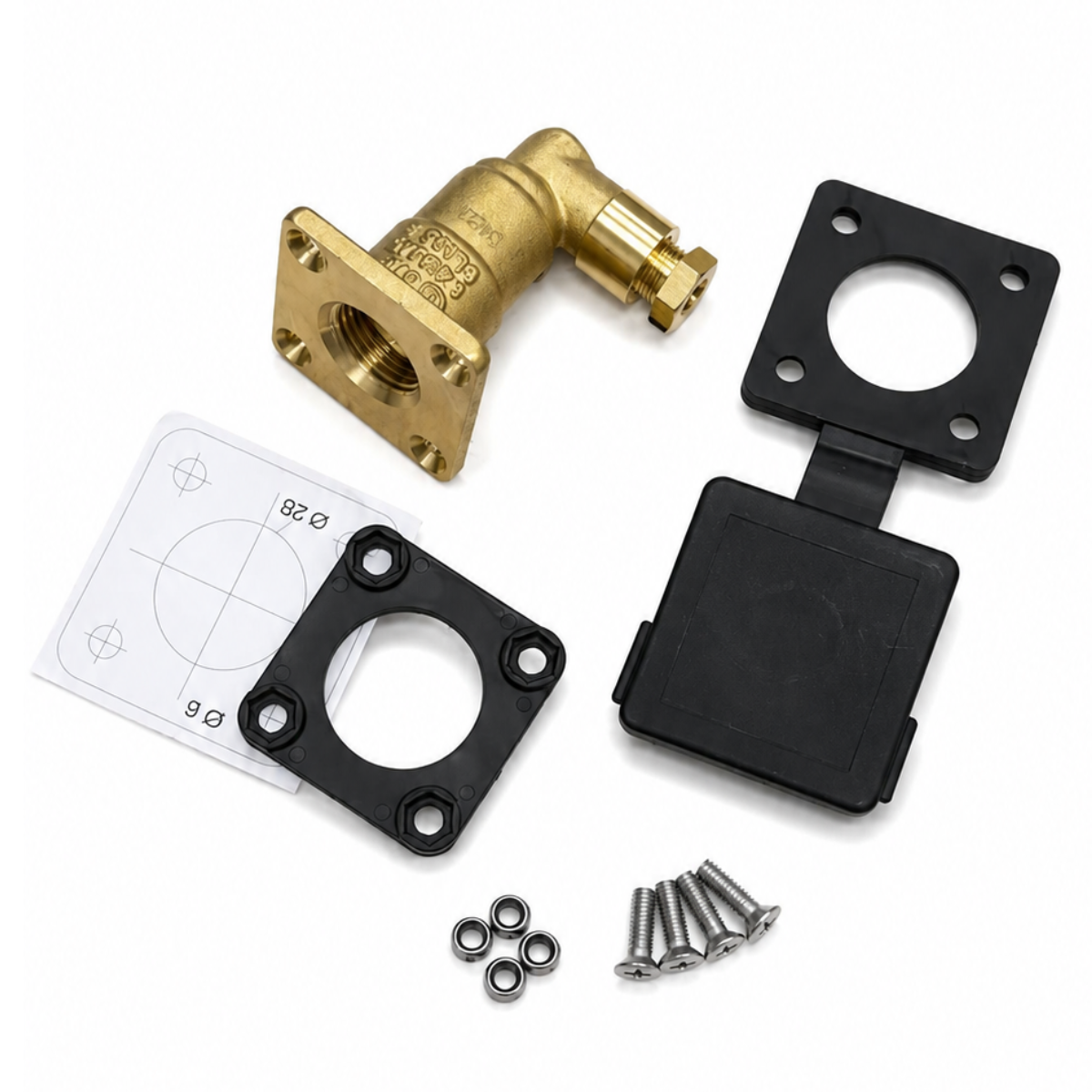

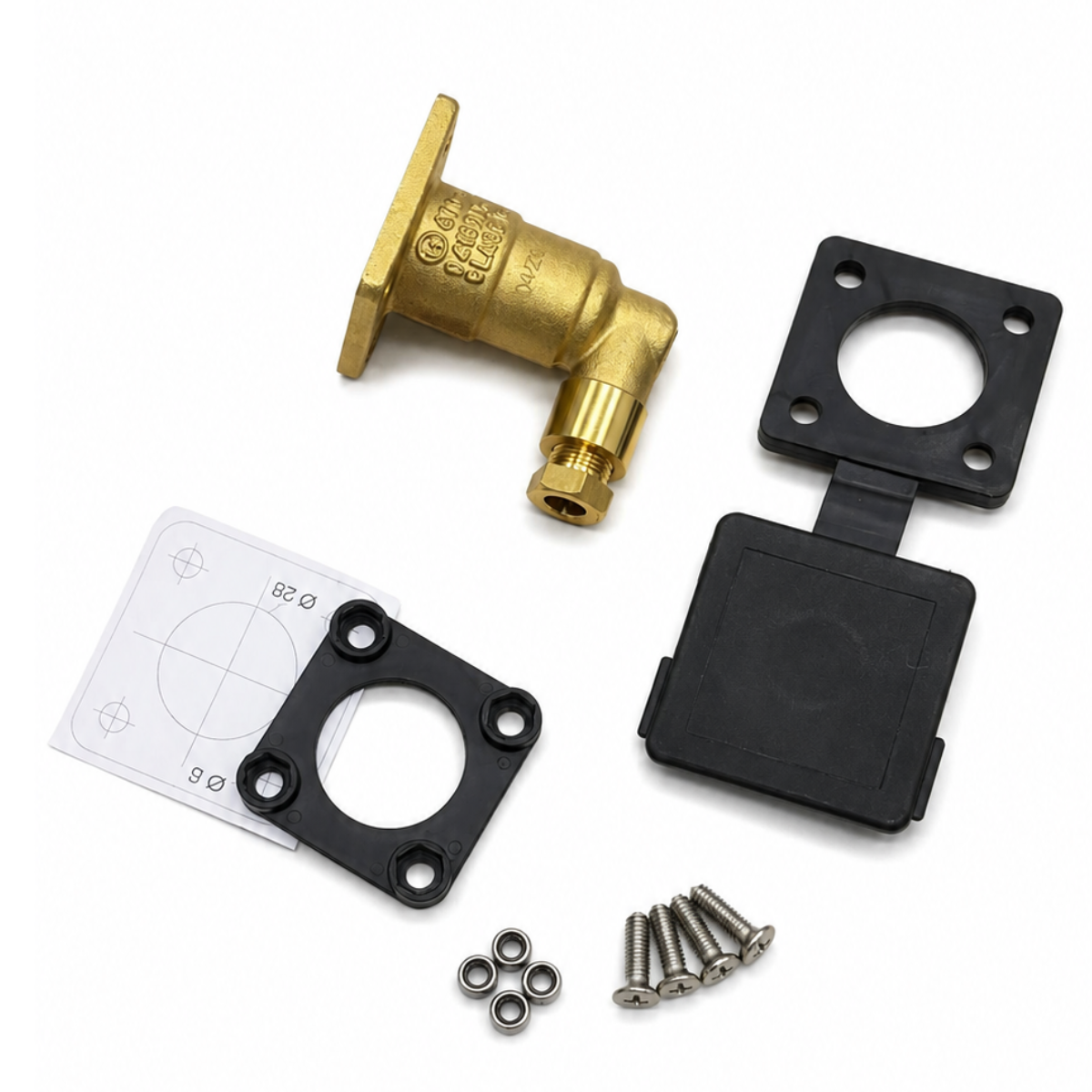

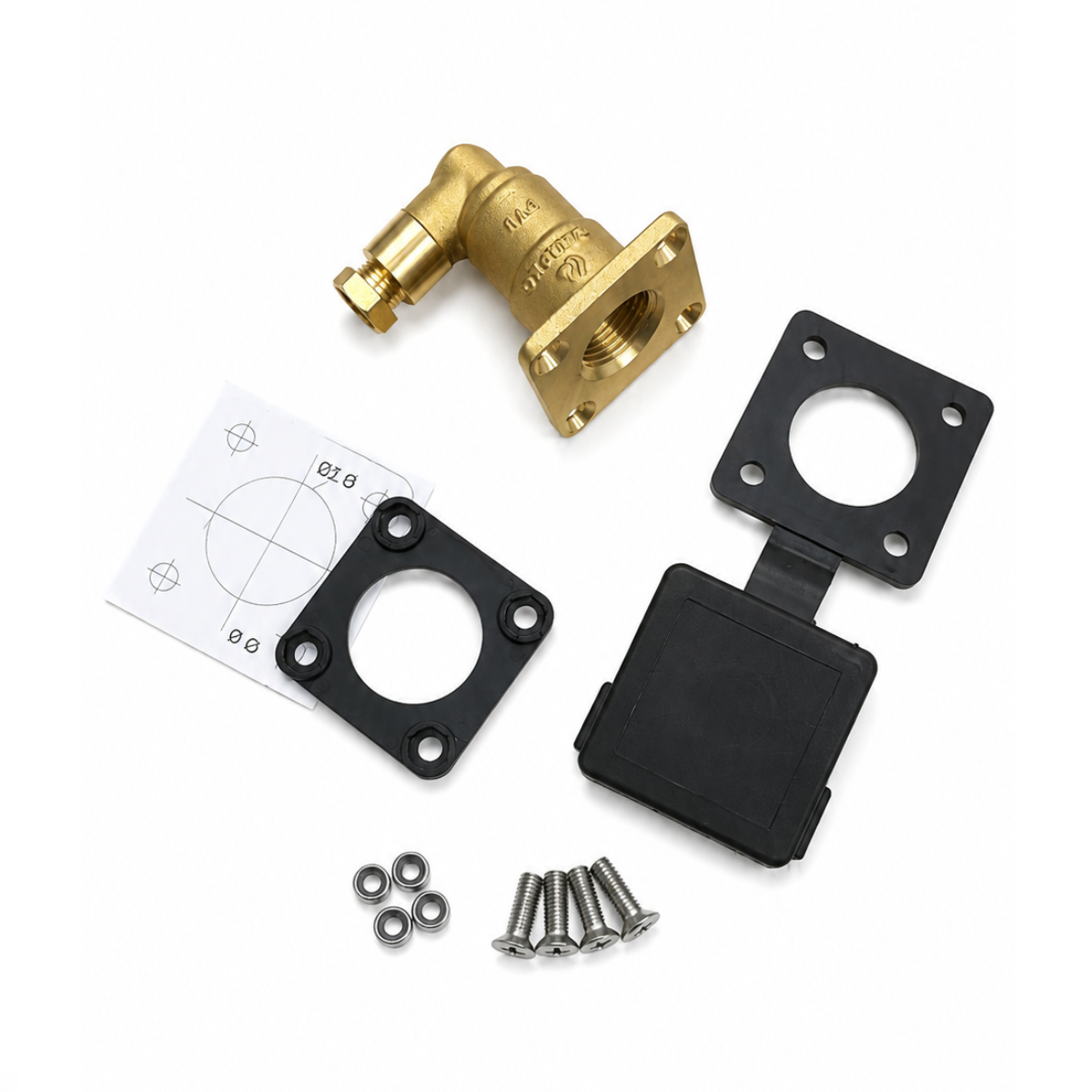

• 1 × Angled LPG Filling Point
• 1 × Protective Dust Cap
• Mounting Plate
• Fixing Screws and Nuts
• Technical specifications

  Dimensions: 50 x 50 x 59.5 mm

  Connection:M12x1 (copper cable), 90° angled

  Homologation:67R-01

Please note: Filling adapter is not included. Ensure compatibility with your LPG system before purchase. Installation should be carried out by a suitably qualified LPG
